Luxury Hydraulic Lift for Villas – Retrofit, No Pit Required

Can a finished villa take a hydraulic lift?

The honest answer is that it depends on three numbers, and all three can be measured in an afternoon. They are the floor-to-floor height of the top landing, the clear opening you can give the cabin and its doors, and the route the hydraulic power unit can take to the shaft. Everything else on this page is detail around those three.

A hydraulic lift with a 0 m pit is a strong fit for finished villas because it removes the single most disruptive part of a normal installation. There is no pit to cast, no floor slab to break, and no drainage to add under the lowest landing. On this page the pit depth is listed as 0 M, the lift travels up to 14.5 m across 5 stops, and the drive runs from a single-phase 220 V supply rather than a three-phase drop.

What makes a retrofit cheap or expensive

The cost of adding a lift to a finished villa rarely sits in the lift itself. It sits in how much of the house has to be opened up, and four items decide that. Does a shaft void already exist, and can the power unit be placed close to the shaft? Can the cabin and its panels be carried through the existing stairwell and doorways, and can the work be done in one continuous run instead of in stages?

Because this lift needs no pit, the ground floor keeps its floor finish. That matters more than it sounds. A pit means cutting a slab, breaking a screed, casting concrete, curing it, waterproofing it, and then rebuilding the finish around the opening. On a finished ground floor that sequence is the largest single line in the budget, and it is the one item this lift removes entirely.

Two conditions still come with it, and they should be on the table from day one. The first is headroom at the top landing: the page states that the lift fits a 3 m overhead clearance. The second is the route to the hydraulic power unit. A hydraulic drive needs a place for the power pack that stays accessible for servicing, and the villa has to offer that place near the shaft.

If you would rather compare this drive against traction and screw lifts before committing, the hydraulic home elevator range shows the same family in other cabin layouts, and the full product list covers the alternatives side by side.

How a 0 m pit hydraulic drive works

A pit exists in a conventional lift for one reason: the car and its frame have to travel below the lowest landing so that the floor of the car can sit level with the floor of the house. Remove that requirement and the pit disappears.

This lift solves it with the cylinder arrangement. The unit on this page uses two large cylinders of 2.9 m length, driven by a 4.7 kW power unit on a single-phase 220 V supply. Instead of the car sinking into the ground, the cylinder travel is arranged so that the lowest position of the car is already at finished floor level. The result is a hydraulic home lift that starts from the floor you already have.

Why hydraulic rather than traction for a retrofit

Traction lifts need a machine room or a compact machine space above the shaft, and they need a shaft structure that can carry that load. Many finished villas do not have the headroom, and the ones that do often cannot reach the top of the shaft with a crane or a hoist without taking the roof apart.

Hydraulics move the heavy hardware to floor level. The power unit sits beside the shaft and can be serviced standing up. The load path runs down through the cylinders into the base of the structure, which is easier to reinforce in an existing building than a load suspended from the top. This is the practical reason a hydraulic lift is usually the first option to price for a finished villa.

Two limits to design around

Travel is the first limit. The page lists a maximum height of 14.5 m for the 5-stop configuration, so the top landing has to fall inside that figure, measured finished floor to finished floor.

Shaft top height is the second limit. A hydraulic lift still needs room above the highest landing for the cabin and its frame. The page states a 3 m overhead clearance requirement, so a sloping roof space or a low ceiling over the top landing has to be checked early rather than after the order.

Key specifications on this page

Everything in the table below comes from the parameter table of this page. The third column is the retrofit consequence of each figure, because a specification only becomes useful once you know what it does to your building.

Converted values are rounded for reading. Reference only. Final engineering verification required.

How the range behaves at 400 kg and at 630 kg

Load is not just a number on a plate: on a hydraulic lift it changes how the cabin is built and how the shaft structure is loaded. At the bottom of the range, a 400 kg cabin suits a two to three person household lift with a compact footprint. At 630 kg, the cabin takes more people per trip and the cylinder and structure work harder. Both sit inside the range listed on this page, and custom builds are quoted above it, up to 1000 kg.

The same drive appears in other villa layouts, including a microprocessor-controlled sightseeing elevator for villas and an indoor/outdoor 400 kg hydraulic lift, if a glazed cabin or a semi-outdoor position is a better match for the house.

What to measure before ordering

Four measurements decide whether this lift fits, and all four can be taken with a tape measure, a spirit level and a phone camera. Take them before the first quotation, not after, because every one of them can change the cabin size.

• Site survey checklist 0 / 4
• Total travel height. Measure finished floor to finished floor from the lowest landing to the top landing and add them up. The total has to stay inside the 14.5 m maximum listed on this page.
• Clear shaft or void size. Measure the narrowest clear width and depth from finished surface to finished surface at every stop, not just the widest floor. Side runs and pipework often pinch one landing.
• Headroom above the top stop. Measure from the top finished floor up to the soffit or roof structure. The page states a 3 m overhead clearance for this lift, so this figure decides the position of the top landing.
• Access route and power unit space. Note the narrowest doorway and stair turn the cabin panels must pass, plus a serviceable place near the shaft for the power unit and its 220 V feed.

Recording the survey properly

Write each figure down with the surface it was measured from. A shaft that measures 1,200 mm from plaster to plaster is a different shaft once tiles and skirting are added, and a millimetre claim that ignores the finish is the usual cause of a late redesign.

Photograph every landing from the same corner, with the tape visible in the frame. Add one photo of the route the panels will take, including the narrowest doorway and the turn on the stairs. These five or six images remove most of the back-and-forth before a quotation can be issued.

When the shaft has to be created

If no void exists, a steel frame shaft or a masonry enclosure can be built inside the house or against an outside wall. The lift itself does not change; what changes is that the project now has a structural package in front of the lift package.

An outdoor position is often the simplest retrofit of all because the shaft is a new structure from the outset and the house stays closed while it is built. A weather-protected outdoor lift such as the compact outdoor elevator for villas covers that route.

Power and electrical conditions

This lift runs on a 220 V, 50 Hz single-phase supply with a 4.7 kW motor. In a finished villa that is good news: the lift does not need a three-phase service, a new transformer or a supply upgrade, and in most houses the work is a new dedicated circuit from the existing board.

The electrical side still has to be done properly, and that is a local decision. Circuit breaker rating, cable cross-section, protective device type and earthing method follow the wiring rules of the country the villa stands in. The figures on this page tell your electrician what the lift needs; they do not replace the local calculation.

What the installation needs from the house

Four items define the electrical scope, and each one is a question for the electrician rather than a specification issue:

• A dedicated circuit from the distribution board to the power unit, sized to the 4.7 kW drive and protected to the local standard.
• An isolation point at the power unit, so the lift can be worked on without switching the whole house off.
• Protection appropriate to the supply arrangement, decided on site against the earth loop and the installation method.
• Stable voltage at the drive terminals, since a long cable run is the usual reason a hydraulic lift underperforms on a retrofit.

Where the lift is installed outdoors or in an unheated outbuilding, the power unit and its enclosure need protection from weather and from condensation. The lift is designed for villa use; the electrical protection around it still has to suit the local environment.

Sizing the practical questions

The power unit is a machine, and machines make noise. Put it where the sound does not arrive in a bedroom at night: a plant cupboard, a garage wall, an outdoor enclosure, or a service recess with ventilation. Distance from the shaft is a hydraulic question, and it should be answered by the supplier before the position is fixed in the design.

Access comes next. A power unit that can only be reached by moving furniture is a power unit that does not get serviced on time. Leave standing room and a clear face for the panel, and keep the isolating switch in the same space.

Commissioning checks on the electrical side

At commissioning, confirm the circuit is dedicated, the protective device matches the design, the power unit is correctly earthed, and the emergency stop cuts the drive as intended. Record the readings and keep them with the handover folder, because the first service visit will ask for them.

Confirm the supply with all normal household loads running, not at an empty hour. A retrofit lift is judged by how it behaves on a winter evening when the house is busy, and that is the condition the commissioning check should reproduce.

Cabin and finish options

The cabin is the only part of the lift your family touches every day, so it is worth specifying properly. This page lists two cabin directions: 304 stainless steel, or aluminium alloy, with LED lighting inside the cabin and a deck floor.

Stainless steel suits a villa where the lift sits near stone or dark timber and the cabin should read as a permanent architectural element. Brushed 304 resists fingerprints and everyday cleaning, and it holds a reflective surface without being mirror bright. Aluminium alloy does the opposite job: it keeps the frame light, which helps where the shaft is tight or the structure is carrying enough already.

Light, floor and doors

LED lighting is listed for the cabin on this page. It matters more than it sounds: a small cabin with warm, low-heat light feels bigger than the same cabin lit by a single cold downlight, and LED keeps the interior temperature stable on a long summer day.

The cabin floor is a deck floor, so the villa’s own finishes do not have to be repeated inside the lift. If the landing floors are marble or timber, the deck gives a clean transition strip at each door instead of a match that never quite lines up.

Doors are automatic sliding, which removes the manual gate from the routine. Door sensors and an emergency stop are listed alongside them in the safety group, and both are checked at handover.

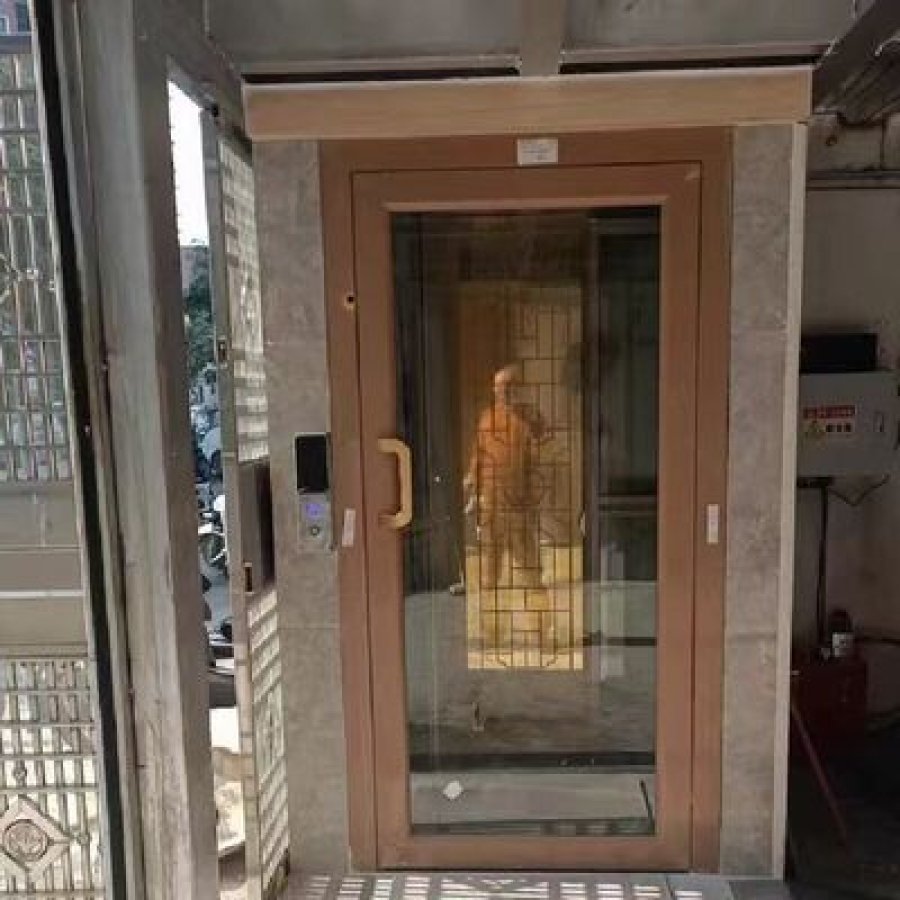

Gallery

Six of the twelve photographs already published with this lift, showing cabin finishes, cylinder arrangement and villa installations. Select any image to open it larger; use the arrow keys or the buttons to move through the set, and Escape to close.

✕

← Previous Next →

Two related layouts are worth a look if the cabin is the deciding factor: the sightseeing version for villas, and the compact outdoor lift for a shaft outside the envelope of the house.

Installation in an occupied house

A retrofit lift is installed in a house that people are still living in, which changes the sequence. The shaft work has to be separated from the finishing work, and the stairs have to stay usable where they can. Dust is kept on the work side of a sheet of plastic, not on the other side of the house.

The seven stages below are the route this kind of installation normally follows. Treat the order as fixed and the length of each stage as a question for the installer who visits the site.

1. 1

   Survey and drawings

   The measurements from section 4 are turned into a shaft drawing, a cabin drawing and a power unit position. Structural checks on the floor and the framing are done at this point, before anything is ordered.

   You provide: measured shaft sketch, landing heights, access photos, electrical board photo.

2. 2

   Protect the route, set up the work zone

   Floor protection goes down along the carry route, doorways are masked, and a dust barrier is fixed around the shaft. The rest of the house stays sealed while cutting and drilling happen.

   Ask for: a written note of which rooms will be out of use and for how long.

3. 3

   Prepare the shaft or build the enclosure

   Where a void exists it is squared, lined and closed in. Where it does not, the steel or masonry enclosure is built and tied into the structure. With a 0 m pit there is no excavation stage here: the lowest floor finish stays where it is.

   Watch point: protection of the finished floor at the lowest landing during the whole of this stage.

4. 4

   Position the power unit and hydraulic line

   The 4.7 kW power unit is set on its base near the shaft, and the hydraulic connection to the cylinders is made. This is when the service access and the 220 V circuit have to line up with the drawing.

   Coordinate: the electrician and the lift fitter on the same day where possible.

5. 5

   Assemble the cabin and guides

   Cabin panels, frame and the 2.9 m cylinders are installed. Because the panels arrive flat and are assembled in place, the narrowest doorway on the route matters more than the shaft itself.

   Confirm first: the panel sizes against the measured door widths and stair turn.

6. 6

   Doors and landing finishes

   Automatic sliding doors go on at each stop, and the transitions between the landing finish and the deck floor are closed. This is the stage where the villa starts to look finished again.

   Decide early: threshold detail at marble, timber and tile landings.

7. 7

   Electrical connection, testing and handover

   The drive is connected to its dedicated circuit, the controls are commissioned, and the safety functions are tested. The house handover includes a walk-through of the controls and a service contact for the warranty period.

   Keep: the test record, the warranty start date and the service contact in one folder.

Keeping the damage inside one area

Three habits separate a clean retrofit from a messy one. First, cutting is done in a contained zone with extraction, not in the open stairwell. Second, the carry route is protected before the first panel arrives, not after the first scratch. Third, the shaft is closed and made dust-tight at the end of each working day.

The new structure is the other half of the story. Where an enclosure is added, expect visible new building work: a wall, a frame or a shaft front that has to be decorated to match the house. Budget for that finish as part of the project, and agree with the fitter who closes the last reveal.

Where an existing void is used, the changes are usually limited to the shaft lining, the landing doors and the small penetrations for the hydraulic line and the electrical feed. That is the cheapest version of a retrofit lift, and it is also the version that leaves the villa looking the way it did before the work started.

What can run in parallel

The electrical circuit can be run while the shaft is being prepared, and the cabin can be assembled while the landing finishes are still being decided. The one sequence that cannot be compressed is the hydraulic connection and the commissioning test, because both need the structure complete and the power available.

Safety devices and handover checks

This page lists three safety devices: emergency stop, overload protection and door sensors. Treated separately they are just a list. Treated as a set, they cover the three ways a residential lift is misused: someone presses stop in a hurry, someone loads the cabin beyond its rating, and someone tries to leave the car while it is moving.

Terms used on this page

Three phrases carry most of the confusion in retrofit enquiries. They are defined here so that the quotation, the drawings and the site conversation all use the same meaning.

• Pit depth The distance the car has to travel below the lowest finished floor. On this lift the figure is 0 m, so no excavation is made at the bottom landing. – the reason a finished ground floor can stay untouched.
• Overhead clearance The clear vertical space above the top landing that the cabin and its lifting equipment need. This page states a 3 m requirement, so it is one of the four survey figures. – the figure that decides how high the top stop can go.
• Single-phase supply A 220 V, 50 Hz domestic supply rather than a three-phase industrial feed. This lift runs from the single-phase service already in the villa. – why no supply upgrade is normally part of the scope.

Handover checks worth doing yourself

Before the installer leaves, walk through the following items. Each one is a two-minute check and each one is much harder to raise later.

• Level accuracy at every stop, checked against the landing finish rather than by eye from inside the cabin.
• Emergency stop tested from inside the cabin and from the landing.
• Door sensor response demonstrated with the car stationary and again while moving.
• Automatic sliding doors opening and closing cleanly at all five stops.
• Overload behaviour explained, with the rated figure for this cabin and the household rule that goes with it.
• The dedicated circuit, isolation point and protective device identified on the electrical drawing.
• The evacuation or release procedure for a power failure, as supplied for this model, understood by at least two adults in the household.

Maintenance, spares and warranty

The warranty on this lift is 12 months, listed as one year on the parameter table. A year is enough to catch an installation fault, which is exactly what it is for, and it is not long enough to be a maintenance plan. The plan is the part the owner controls.

A hydraulic drive is mechanically simple and rewards routine attention. The fluid, the seals, the cylinder rods and the door sensors do almost all of that work. All four are accessible from outside the shaft when the power unit has service room around it.

The maintenance routine

Spares worth holding

For a single lift in a private villa, a large spare parts stock is wasted money. A small kit is not. The sensible list is the items that stop the lift working and take time to source: door sensor components, seal and hydraulic consumables, and the control components the supplier identifies as wear items for this model.

Service and support

The page states ISO 9001 and CE certification, one year of warranty and local service in all 17 target markets. That last point is the one to test during the enquiry: ask which service partner covers your country, how quickly they can attend, and whether the first service visit is included in the contract.

Book the first service inside the warranty window. Not because the lift is expected to fail, but because a warranty claim is much simpler when the machine has been seen by a technician and the readings are on file.

What tends to cost money later

Three things drive the cost of ownership of a retrofit lift. The first is a power unit installed without service access, because every visit takes longer. The second is a shaft that lets water and dust reach the hydraulic equipment. The third is a household that does not know the rated load, which is how overload protection gets tested by accident rather than by design.

Retrofit questions buyers ask

These are the questions that come up in almost every villa retrofit enquiry. Each answer uses only the figures listed on this page, and each one links back to the section where the detail sits.

If your question is about a specific villa, the fastest route is to send the survey figures from section 4 with a photograph of the shaft and the electrical board. A feasibility answer is possible from those four numbers.

What to send for a quote

A quotation for a villa retrofit lift is only as good as the information behind it. Eleven items are enough for a priceable offer, and all of them come from the survey you have already done or from a few photographs.

• Quotation information pack 0 / 11
• Five landing levels. Which floors the lift serves, and the finished floor-to-floor height between each pair.
• Total travel height. The sum of those landing heights, checked against the 14.5 m maximum on this page.
• Clear shaft dimensions. Width and depth at every stop, measured surface to surface, with the narrowest landing marked.
• Overhead clearance. The clear height above the top landing, to be compared with the 3 m figure stated on this page.
• Cabin finish. 304 stainless steel or aluminium alloy, and whether glazed sightseeing panels are wanted.
• Rated load. Where the cabin should sit in the 400–630 kg range, or a custom figure above it if the household needs more.
• Door arrangement and thresholds. Where the doors open on each landing and what the landing finish is at each one.
• Power supply. Confirmation of a 220 V, 50 Hz single-phase supply, plus a photo of the distribution board with a spare way visible.
• Access route photos. The narrowest doorway, the stair turn and the path the cabin panels will travel.
• Power unit position. Your preferred location for the power pack and the service access that comes with it.
• Site and timing. Delivery address, whether the house is occupied during the work, and the window you want the installation in.

What happens with the pack

The survey figures are checked against the cabin range and the drawings are prepared. Where a structural enclosure is needed, the lift drawing becomes the input to a local engineering check. The quotation then covers the lift, the configuration changes and the delivery terms, with the site work either included or listed as a separate package, depending on who is carrying it.

Send the pack even if two or three figures are still missing. It is easier to close a gap with one follow-up question than to price a project on assumptions, and the missing items are usually obvious from the photographs in the same email.
