Hydraulic Elevators Types Uses and Selection Guide

01 · How a hydraulic drive lifts a car

A hydraulic elevator does not pull a car up, and it does not balance it. It pushes the car up with pressurised oil, and then holds the entire weight there.

The published description of the mechanism is consistent. A pump pressurises oil, the oil travels to a cylinder, and the pressure moves a piston that lifts the car. To descend, valves release oil back to the tank and the car settles under its own weight. What separates the three types is where the cylinder is placed.

One consequence matters more than any component: there is no counterweight. A traction car is balanced against one, so its motor mostly moves the difference in weight. A hydraulic pump carries the full load and keeps carrying it while the car stands at a landing, which is where the category's simple mechanics and its energy profile both come from.

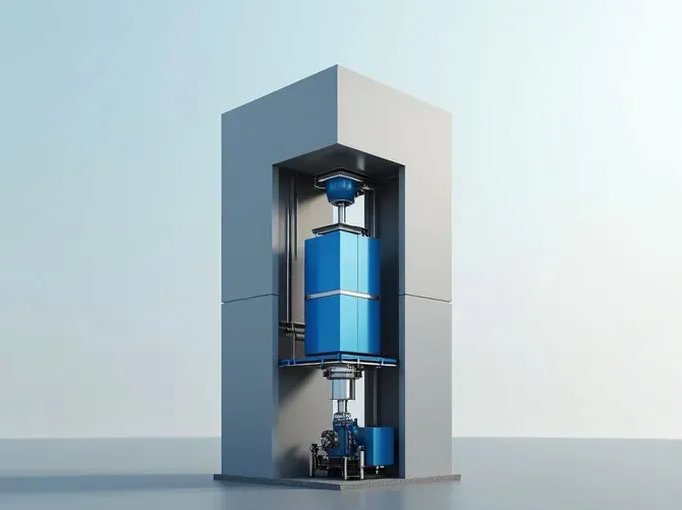

Power unit, valve block and cylinder: the three assemblies every hydraulic elevator shares.

The power unit does four jobs at once

The power unit is described as one object, but four functions sit inside it: the motor drives a pump, the pump pressurises the oil, the tank stores and conditions it, and filtration keeps the fluid clean. Published lists name gear, vane and piston pumps together, so pump choice is a design decision rather than a mark of quality.

• Motor and pump. Convert electrical power into fluid pressure, with pump type matched to load and duty cycle.
• Hydraulic oil. Carries the power, and has to lubricate, resist wear, protect steel from rust and carry heat away.
• Tank and filtration. Hold the oil, let it settle and cool, and keep particles out. Contaminated or overheated oil explains most lifts that behave differently in summer.
• Pressure monitoring. Reports what the system is doing, which is how a technician separates a valve setting from a pump fault.

The cylinder is where the three types divide

A cylinder converts fluid pressure back into mechanical movement. Single-acting and double-acting versions appear in the published lists and differ in where the force comes from on the return journey. Everything else follows the type: a ram under the car, a jack beside it, or wire ropes.

Valves, control logic and the safety chain

Control changed most in recent years, and it is the one part a buyer can specify without touching the civil works. Published sources describe two generations: relay logic, called economical but less capable, and programmable logic controllers, called more reliable at a higher equipment cost. The choice shows up in diagnostics, not in the ride.

• Valves. Directional, flow and pressure valves decide which way the car moves, how fast and what it may lift.
• Safety devices. Brakes that engage on overspeed or rope failure, governors that detect excessive velocity, buffers, door locks, and load sensing against overcapacity.
• Emergency provisions. Manual stop controls and a fault alarm, listed as standard items rather than options.
• The roped exception. Where ropes drive the car, the governor is part of the type's own safety chain, because the rope path adds a movement mode the direct-acting arrangement does not have.

02 · Three build types, one deciding question

Ask one question first: can a cylinder pit be excavated at the lowest landing? The answer removes one or two types before any price matters.

Almost everything else can be adjusted later: doors, finish, control generation and where the car stops all follow the type. The excavation cannot be renegotiated after the building is finished, because it is the only item that changes the ground under the lowest floor. That is why the table below is arranged around it.

Built from the published descriptions. Travel and excavation are relationships, not dimensions for any machine.

Read the table as a sequence rather than a menu. Where the ground takes a pit and the travel is short, direct-acting is the simplest and easiest to maintain. Where excavation is impossible, holeless was developed for exactly that case. Where the travel is longer than a jack can cover, roping buys the stroke back.

03 · Hole-type systems: the pit is the project

In a hole-type system the cylinder is not a component inside the building. It is a structure underneath it, and the building has to be opened up to receive it.

The published description of the hole-type hydraulic elevator is short. The cylinder extends underground to a depth equal to the travel and the car is mounted directly on the piston. Oil entering the cylinder raises the car; oil leaving lets it down. There is no rope in the lifting path, which is why the arrangement is called the simplest of the three.

Simplicity is not the only attraction. A direct-acting lift has the fewest parts above the pit, the load path is short and vertical, and the cylinder is one object in a known position that a technician can inspect without opening the shaft. Most of the maintenance burden the other two types carry comes from hardware introduced to avoid excavation. This version avoids the hardware and pays for it in civil work.

What the pit has to do

The excavation is more than a hole for the cylinder. It is a room with a floor, walls, waterproofing and a way to stay dry, and each of those is decided by conditions below the lowest landing rather than by the elevator. When a project is delayed, it is usually here.

• Depth. Roughly the travel height, because the ram sinks as far as the car must rise.
• Water. The pit sits below the building, so the water table, drainage and waterproofing decide whether it stays usable.
• Access. People and materials have to reach the bottom safely during construction and at every service visit.
• Structure above. The load path returns into the building at the lowest level, which has to be able to accept it.

Ground conditions that decide it

Published descriptions are blunt about the geology: the direct-acting design calls for favourable ground conditions and a substantial amount of civil work. Rock, running sand, a high water table or an existing foundation in the way can turn an ordinary pit into a project of its own.

• Diggable ground. Soil that holds a vertical face without continuous support and can be excavated with ordinary equipment.
• Water under control. A water table low enough, or manageable enough, to keep the pit dry during construction and afterwards.
• Space to work. Room below or beside the lowest landing for machines and people, which an occupied building often cannot give.

The trade is worth stating plainly. Direct-acting gives the longest travel of the three and the simplest mechanism, and in exchange it takes the most construction, the most ground risk and a pit that has to stay dry for the life of the installation. On willing ground that is an easy trade. For an existing house, a listed structure or a basement that already floods, it is the point at which the project moves to section 4.

04 · Holeless systems: the retrofit route

Holeless systems were developed for one purpose: to give a building hydraulic lifting without opening the ground underneath it.

Instead of a cylinder sunk below the car, holeless layouts use ground-mounted jacks standing beside it, working through the same fluid principles. Nothing is excavated, so the equipment can be brought into an existing building and the civil scope shrinks to the structure that receives the jack loads. Three published situations make this the deciding advantage rather than a preference.

That is the core of the holeless case: it is not a cheaper direct-acting lift but a different set of compromises. Something has to carry the lifting force, and if the ground is no longer doing it, the building is.

What stands beside the car

Published component lists place the jacks at floor level beside the car, mounted on the structure rather than sunk into it. The rest of the system is unchanged: a power unit, a valve block and controls, none of which has to sit under the car. What changes is where the loads land and where maintenance happens.

• The structure takes the load. Whatever the jacks stand on has to be checked, because the force now enters the building at floor level.
• Travel follows the jack. The ceiling is set by the jack length that fits beside the car, not by the depth of a hole.
• Maintenance stays visible. Components that would sit at the bottom of a pit are reachable at floor level instead.

Where holeless stops being the answer

The type is not unlimited, and its limits mirror its advantages. With no pit, the mechanism makes up the difference elsewhere: usually in the travel it can cover and the hardware it carries.

• Long travel. A jack beside the car has a shorter range than a ram that can sink as deep as the travel, so the roped layout in section 5 becomes the next step.
• Structure that cannot take the load. If the floor beside the shaft will not accept the jack forces, reinforcement becomes part of the project.
• Space beside the car. The jacks have to stand somewhere, and a shaft designed around a compact car may not have the width.

05 · Roped hydraulic layouts and the 2:1 trade

Roped hydraulic systems keep the hydraulic drive and remove most of the excavation by letting wire ropes double the distance the car travels for each unit of ram movement.

The published description of this type is specific. Wire ropes and a cylinder work together through a pulley arrangement: the piston connects to a sheave, and the ropes run from a fixed point over that sheave to the car. The result is a 2:1 motion ratio, so the ram moves about half the distance the car does and the excavation shrinks in proportion. Because the arrangement introduces a rope path, the same descriptions state that speed governors are required, that the hydraulic components sit inside the shaft, and that the controls go in a mechanical room nearby.

The 2:1 arrangement as published: the ram carries a sheave, the ropes double the car's travel, and the excavation stops being tied to the travel height.

The reason to accept the extra hardware is geometric. A project needing more travel than a jack can give, but unable to take an excavation as deep as the travel, has no answer inside the first two types. Roping provides one: the ram moves half as far, so the hole is half as deep. The cost is the rope path, which has to be inspected, governed and kept in alignment.

One planning consequence is easy to miss. With the components inside the shaft and the controls in a nearby room, the shaft is no longer just a vertical passage. It has to give access for inspecting ropes, sheaves and the governor, and that room has to be found in a building that may not have one to spare.

06 · Where hydraulic drive fits, and where it stops

Two published limits carry most of the category: low- to mid-rise buildings, typically two to eight floors, and a travel ceiling around 20 m before the cylinder stops being practical.

Neither limit is arbitrary for hydraulic elevator applications. The floor count follows from the travel, and the travel follows from pushing a car with a column of oil and holding it there. Add the absence of a counterweight and the picture is complete: a drive that is strong, simple and stable at short distances, and less sensible as the distance grows.

Four constraints that keep the band narrow

The band is narrow because four separate constraints point the same way. Each is described as a consequence of the mechanism rather than a defect, and each has a maintenance routine attached.

Two limits that end the conversation

Two of the constraints are not gradual. A project needing travel well beyond the published stroke range has to move to multi-stage cylinders and a heavier maintenance load, or to another drive family. A project that would put a leaking cylinder into a sensitive aquifer carries an environmental question that routine maintenance does not remove.

None of this argues against hydraulic drive inside its band. It is described as strong, simple to maintain, and able to hold a heavy load in a short building without a machine room of its own. The limits define when the type is used well, which is the question to put to a supplier in writing before a deposit is paid.

07 · Advantages, and what they cost you

The advantages of hydraulic drive are real and specific, and every one of them has a matching cost. A buyer who can name both sides of each pair is harder to sell to badly.

Published descriptions are consistent on the strengths: load capacity, a simple structure that is comparatively easy to maintain, and equipment that can sit at the bottom of the shaft instead of in a machine room of its own. The same descriptions are equally consistent on the costs, and the two lists are worth reading side by side.

The cost question, without numbers

Cost in this category follows the building, not the floor count: published sources describe expenses as correlating primarily with building height. That sentence explains why a quote for eight floors is not four times a quote for two, and why the same equipment produces different totals on two sites.

• Equipment. Power unit, cylinder or jacks, valve block, control generation, car and doors. The type decides which are needed, and roping adds ropes, sheaves and a governor.
• Civil work. Excavation, pit construction and waterproofing, drainage, and reinforcement where jack loads enter the structure. Minor on a new build; often the deciding item in an existing one.
• Lifetime items. Energy, oil and filters, seals and valve service, safety device verification, and the access arrangements that make all of it possible.

That is why this page prints no price range for any of the three types. A figure quoted per floor or per stop would hide the items that actually move a budget, and would be compared against quotes prepared on different assumptions. The honest comparison is a scope list, and section 11 is one you can hand to a supplier.

08 · Components, maintenance and the parts that fail

Hydraulic elevator maintenance follows directly from the components, and the published lists are short enough to use as a supervision tool rather than a brochure.

Published maintenance guidance covers two groups. The hydraulic side is fluid replacement, filter cleaning and component inspection. The safety side is periodic verification of the safety devices, a cleaning routine, and immediate shutdown with a professional inspection whenever the lift behaves abnormally. Both are described as routine rather than specialist.

The list matters because hydraulic faults are usually gradual. A car that becomes slow, a pump that becomes louder, a fluid that darkens: each is visible on a routine visit and expensive if only noticed when the lift stops. A record kept across visits turns inspection into comparison.

The order a hydraulic installation is delivered in

Published descriptions of installation and handover follow a sequence, and the first step decides everything after it. Shaft inspection comes before equipment is ordered, and it is where the constraints in section 6 are confirmed or found.

Five fault patterns owners report

Published troubleshooting lists cover a small set of symptoms, and each points at a different part of the system. A car that will not start is a power, control or pump question. A slow car is usually fluid level, valve function or pump performance. Uneven movement points at air in the system, a leaking cylinder or deformed guide rails. Noise points at pump wear or valve tightness, and a leak at joints, seals or the cylinder.

Four of the five have more than one possible cause, so a visit that starts by replacing parts is guessing. The ten-point record is what makes the guess unnecessary.

09 · Hydraulic, traction or screw drive

The three drive families are not rivals at the same job. Each one is the right answer in a different part of the same decision tree, and the boundaries are worth learning before quotes arrive.

The hydraulic and screw-driven comparison is covered separately in our comparison of the two for residential work. What follows is the wide version, arranged around travel and load.

A wide-brush comparison for orientation. Travel bands are comfortable ranges, not certification, and each family spans many models.

Read it as a filter on your own project. If the travel is long, the counterweight stops being optional and traction takes the lead. If the load is heavy and the travel short, hydraulic drive does the job with the simplest equipment. In a house with limited space and a modest rise, a self-contained screw-driven unit is often the least invasive, which is why our residential range covers both hydraulic home elevators and screw-driven models.

Two practical points decide more projects than the table does. The first is where the drive's equipment lives, because a machine room, a shaft and a corridor cabinet each change what the building gives up. The second is what has to be inspected for the next twenty years. When two hydraulic quotes are compared, the specification items worth reading are in the guide to hydraulic elevator specifications.

10 · Is your site a candidate?

Three questions cover most of the screening. None of them needs a supplier on site, and all three change the answer rather than simply disqualifying it.

The screen is cheap to run: every answer comes from the building rather than a catalogue, and each is something the person who owns or maintains the building can establish in an afternoon. What it produces is the right question to take to a supplier, which is worth more than a rough price.

Two of the ten most often arrive late: the ground record and the headroom above the top landing. Both are cheap to establish before a design exists and expensive to discover after one has been drawn.

11 · What to send for a firm quote

A quote is only as firm as the facts behind it. Eight items separate a real price from a placeholder, and they are all facts about the building rather than preferences about the equipment.

Send these and a supplier can price one project. Send a description instead and the reply is a range with conditions attached, which is how most misunderstandings in this category begin. The list is written to be printed and handed over.

One item on the list is not a measurement at all: which of the three types the quote is for. Where that is not yet fixed, say so and ask for both, because a supplier who prices only the type they prefer produces a comparison that cannot be trusted. Our own hydraulic equipment sits under hydraulic home elevators and hydraulic cargo lifts, with the full range on the product overview.

12 · Questions buyers ask

These are the questions that recur in search terms and in first conversations with buyers. Each answer stays inside what the published descriptions support.

13 · Next step

The order of decisions on this page is the order that prevents expensive surprises: ground first, travel second, type third, price last.

If you have answered the three screening questions and taken the ten measurements, you hold more than most buyers bring to a first conversation, and the type question usually answers itself. Bring both, and a supplier can price the route the building supports instead of the one in their catalogue. Our own range covers hydraulic home elevators and hydraulic cargo lifts for goods and small freight duties, and we say plainly when a project belongs outside both.

The category rewards the buyer who asks about the ground before the equipment. Excavation, stroke and fluid cannot be adjusted later, and they decide which of the hydraulic elevator types a project is really choosing.
